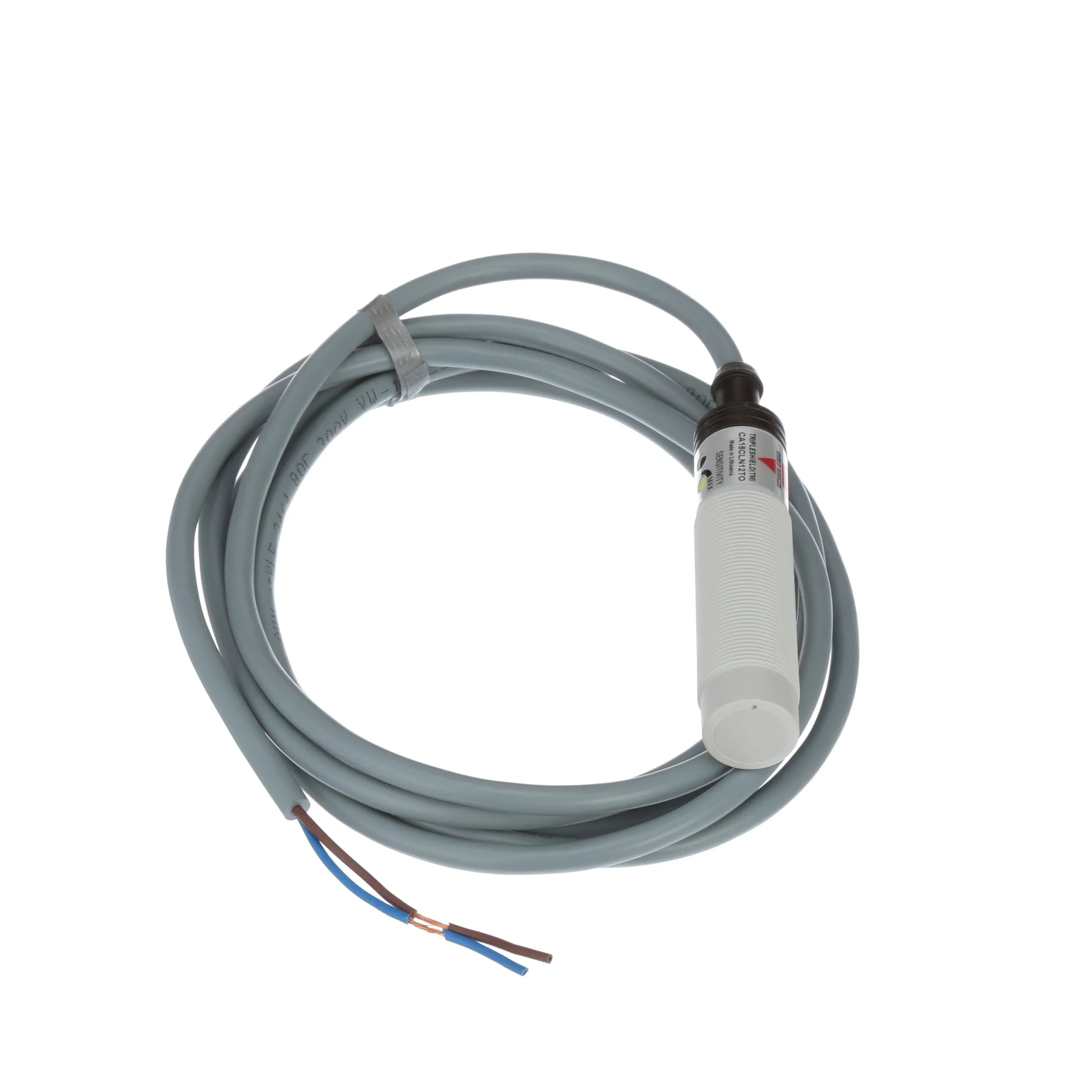

Name: Carlo Gavazzi, Inc. CA18CLN12TO
SKU: 520116

Product Details ＋

Product Attribute	Attribute Value
Body Style	Cylindrical
Cable Length	2 m
Connection Type	Cable 4-Wire
Current, Switching	500 mA
Frequency, Switching	10 Hz
Function	Proximity
Housing Material	Thermoplastic Polyester
IP Rating	IP67
Maximum Operating Temperature	85 C
Measurement Range	12 mm
Minimum Operating Temperature	-25 C
Mounting Style	Non Flush
Mounting Type	M18 Threaded Non-Flush
Operating Temperature, Maximum	85 C
Operating Temperature, Minimum	-25 C
Output	SCR-NO
Primary Type	Capacitive Proximity Sensors
Sensing Mode	Capacitive
Shielding	Unshielded
Standards	UL, CSA Approval, CE Marked
Supply Voltage	250 VAC
Technology	Capacitive
Temperature, Ambient, Maximum	80 °C
Temperature, Ambient, Minimum	-25 °C
Termination	Cable
Type	Capacitive

Overview

Features:

For Sensing of Granulates, Plastics and other Ferrous/Non- Ferrous Materials

Patented TRIPLESHIELD™ Protection from Noise Interference Caused by ESD, GSM or Transient Bursts

Newer Types Feature “Teach-In” Pushbutton Programming for Sensing Range, Material Detection and N/O or N/C Output Programming; Humidity, Dirt and Moisture Compensation; and Automatic Detection of NPN or PNP Loads

12, 18 and 30 mm Diameters and Compact Flat Pack Housing

Rugged and Cost-Effective Polyester Housings

Adjustable Sensitivity, Up to 30 mm

3- or 4-Wire DC, 2-Wire AC/DC or 2-Wire AC

Easy-to-View LED Indication Common Applications Include:

Grain/Plastic Pellet Hopper Level Detection

Level Control Through Sight Glass

Detection Inside of Cardboard/Plastic Containers
